DIY Kant Twist Cantilever Clamp with 2D drawings and 3D models

$ 4.50$ 9.00 ( Ex. VAT )

3D assembly with complete mechanism + 2D CAD DWG drawings
Standarized parts as bearings, screws, washers inside project folder.
DownloadUnzip the zip file. Go to the directory.
INVENTOR : Run project file [.ipj]
STEP: Run STEP file [.step]

DWG: Run any DWG file (AutoCAD, ZWCAD, Inventor, DWG viewer etc.)


Available sets of CAD documentations:

Description

Kant Twist Clamp design – Download DIY Kant Twist Cantilever Clamp plans PDF and DWG AutoCAD

For those seeking a personal touch in their creations, our handcrafted clamp and self-Made Vise options provide the ideal solution. Elevate your DIY metalworking endeavors with our range of DIY Metalworking Tool and crafting clamps, designed to make your projects stand out.

Enhance your workspace with our Kant Twist Cantilever Clamp project, and build a variety of onw workshop tools. Our DIY Metal Clamps Designs options offer a blend of functionality and aesthetics, ensuring your self-builded Cantilever Clamps with Weaver Grip are both efficient and visually appealing.

3D CAD models and 2D DWG drawings – production technical documentation for download

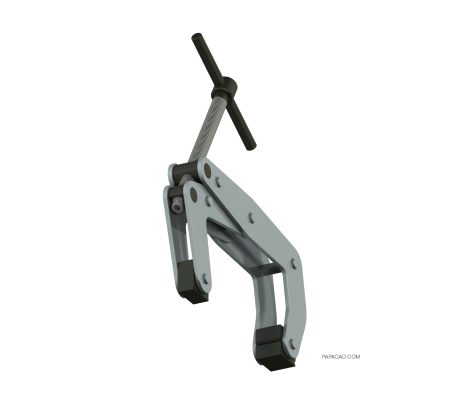

Kant twist clamp design was created by papacad.com in Autodesk Inventor ,version 2014. With this CAD technical docmentation everyone can DIY handle clamp, calculated on 700kg holding capacity. Twist clamp DWG drawings documentation is fully complemented by technological guidelines for machining and welding of steel structures. For other handles, we designed a Scissor handle clamp – free CAD design.


Description of DIY Kant Twist Cantilever Clamp plans

  • 3D Inventor 2014 assembly + 2D DWG files – complete set of documentation – .zip file 7,7[MB)
  • main assembly contains: 10 individual solid 3D parts
  • 2D Inventor assembly DWG drawings – 2 sheets in 1 Inventor DWG files
  • 3D STEP + 3D STL + 3D DWF – 3 files – .zip file 3,5[MB)
  • handle clamp 2D DWG (2004) -2 AutoCAD sheets in 2 DWG files – .zip file 2,1[MB)
  • 2D PDF – 2 sheets in 1 PDF file – .zip file 1,7 [MB)




Handle clamp design description

  • holding capacity up to 700[kg]
  • construction steel S355JR
  • galvanized plates and pins
  • oxidized screw and pivots
