Directional Spool Valve – Download CAD 3D project

$7.00$22.00 ( Ex. VAT )

3D assembly with full mechanism.
Standarized parts as bearings, screws, washers inside project folder.

Download. Unzip the zip file. Go to the directory.

INVENTOR : Run project file [.ipj]
STEP: Run  STEP file [.stp]

Available options:
Inventor 3D, Inventor 2D DWG, AutoCAD DWG, 2D PDF, 3D STP, STL, DWF





Clear

Product Description

Spool Valve (Directional) – complete CAD Project

Download CAD 3D project and 2D documentation

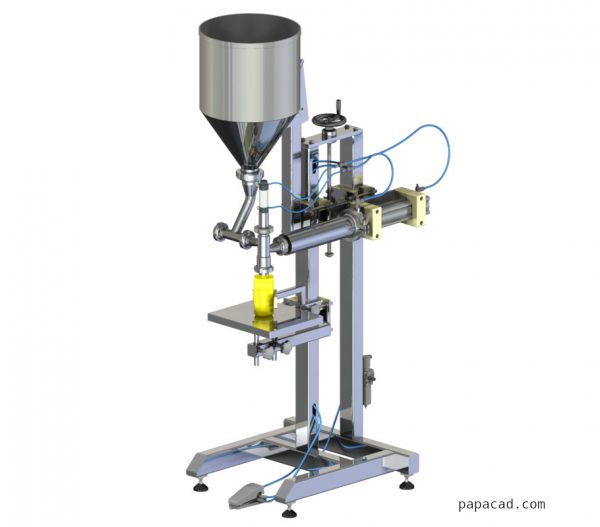

Project for bottling industry. Directional spool with SKF seals packages. Working with dosing tubes as component of Volume Doser.
Spool valve is responsible for the proper medium separation  ( liquid , viscous substance as paste , mayonnaise , ink , ketchup , hand cream and lot more). Appropriate selection of seals and return spring  ensures maitenance-free operation for years.

 Technical data:
  •  weight 2[kg]
  • construction steel 1.4301 aseptic stainless steel
  • pneumatic round cylinder from Metalwork

Model & documentation description

  • 3D Inventor 2014 assembly (complete BOM list)
  • main assembly contains: individual 3D bodies – 48 subassemblies and parts
  • 2D Inventor DWG assembly drawings – 15 sheets/13 files
  • 3D STEP + STL + DWF – 3 files
  • 2D DWG AutoCAD Mechanical (2004) – 15 sheets/15 files
  • 2D PDF from DWG AutoCAD Mechanical – 15 sheets/13 files
